Hatzenbichler Tine Weeder

Tine Weeders Proven On The Organic Farm

The Hatzenbichler Tine Weeder is the highest performing tine weeder on the market.

One of the major differences between Hatzenbichler’s Tine Weeders and any other tine weeder on the market is the hydraulic down pressure on each individual tine section. This ensures that no matter what your field may offer for dips and rolling hills, as shown in the video, you’re still getting 100% weeding action from your tine weeder. Watch the video below for more details.

Demonstrating Hatzenbichler Tine Weeders In The Field

For Scott, Mark and James at Crop Fertility Services, organic farming is a critical form of income. We use what we sell and refuse to sell it if we haven’t proven it. We’ve spent countless hours with Hatzenbichler, Einbock, Treffler, and other older tine weeder systems in the field.

Our experience relying on Hatzenbichler tine weeders to deliver highly consistent results each year provides value to our customers through a quick ability to diagnose and solve issues you may be facing in the field.

Below are a few videos demonstrating the Hatzenbichler Tine Weeder system on our own organic farms. Should you have questions on the price of these, or need Hatzenbichler Tine Weeder replacement parts, please contact us right away. We’d be thrilled to assist you in any way!

Why Is A Tine Weeder So Important For Weed Control On The Organic Farm?

Of every type of mechanical weed control implement at the disposal of the organic farmer, the tine weeder is for many reasons the most versatile.

In organics, there is no wait and spray. Weeds simply will not wait to grow and the best time to tackle them is before they are even visible. We’ve talked with thousands of farmers facing this exact issue over the years and the solution to early season weed control is the tine weeder.

From before plant up to first cultivation passes, tine weeding on our own organic farms is all systems go. We spend hundreds of hours each year combined tine weeding our organic acres, without them we would be losing the weed reduction battle in a major way.

Tine weeders provide major advantages to organic farmers

  • Work on weeds when first pass cultivation is not yet an option
  • Make adjustments to tine placement for in row weed reduction
  • Weed control passes directly on top of the crop row are entirely possible

Get A Hatzenbichler Tine Weeder Quote

Hatzenbichler Tine Weeder Advantages

The single biggest advantage that a Hatzenbichler Tine Weeder has over any other tine weeder on the market is the parallel linkage and hydraulic down pressure on individual tine sections.

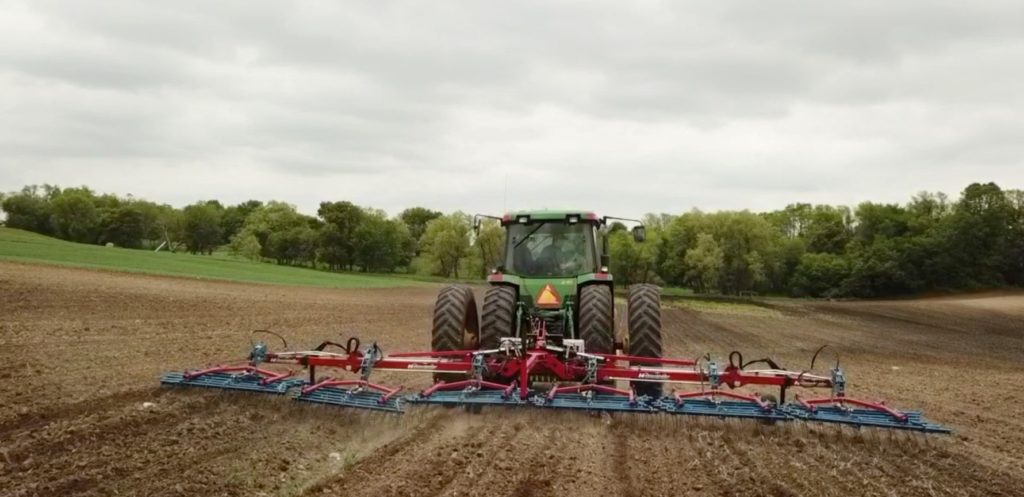

In the photo to the right, you’ll see that we’re tine weeding in a field with hills and uneven ground. In competitor models, the tine weeder would not be as effective, as the individual tines may have more or less pressure on the ground.

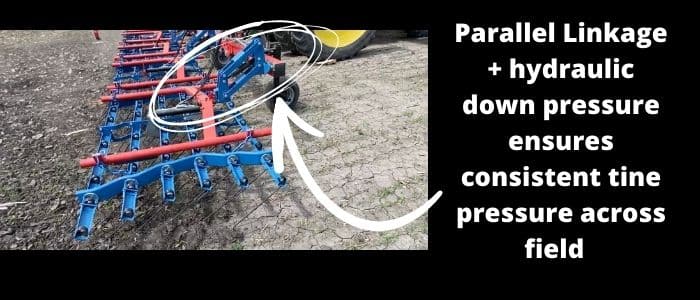

Parallel Linkage

Parallel linkage

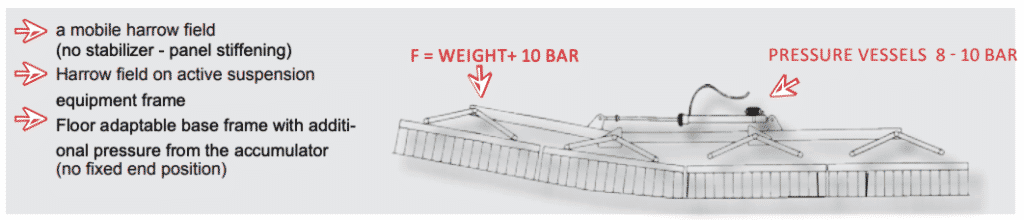

Hyrdaulic Down pressure on Individual Tine Sections

Hatzenbichler Tine Weeder Sizing

Hatzenbichler 3 Point Harrow Tine Weeder Sizing
WORKING WIDTHTine BasketsTINE DIAMETERWHEELSWEIGHT LBS
5 feet1 basket6 / 7 / 8 mm2400 lbs
6.5 feet1 (6 foot basket)6 / 7 / 8 mm2485 lbs
10 feet2 baskets (5 foot basket)6 / 7 / 8 mm2640 lbs

Hatzenbichler Hydraulic Foldable Tine Weeder Sizing

WORKING WIDTHFIELDSTINE DIAMETERWHEELSWEIGHT LBSKWHP
15 feet3 baskets6 / 7 / 8 mm2947 lbs1115
16.5 feet4 baskets6 / 7 / 8 mm21014 lbs1825
20 feet4 baskets6 / 7 / 8 mm21168 lbs2940
20 feet3 (6 foot baskets)6 / 7 / 8 mm21168 lbs2940
24.5 feet5 baskets6 / 7 / 8 mm41650 lbs3750
26 feet5 baskets6 / 7 / 8 mm41760 lbs3750
30 feet6 baskets (5 foot baskets)6 / 7 / 8 mm41962 lbs4460
30 feet6 baskets (5 foot baskets)6 / 7 / 8 mm42204 lbs4460
35 feet7 baskets (5 foot baskets)6 / 7 / 8 mm42645 lbs4465
40 feet8 baskets (5 foot baskets)6 / 7 / 8 mm43086 lbs5170
44 feet8 baskets (5 foot baskets)6 / 7 / 8 mm43306 lbs5170
50 feet10 baskets (5 foot baskets)6 / 7 / 8 mm44188 lbs74100

Hatzenbichler Tine Weeder Technical Specs

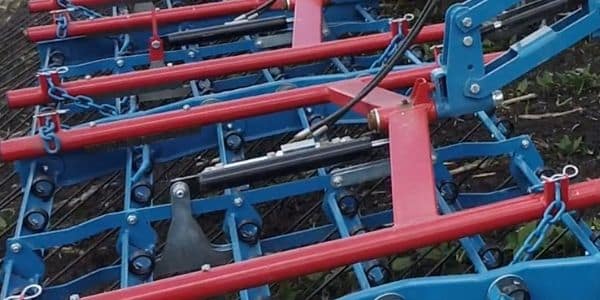

Hydraulic Tine Angle Adjust

A major convenience with a modern tine weeder, like the Hatzenbichler, is being able to adjust your tine angle on the fly from your cab. The oil pressure on the tine angle is the same to each cylinder, meaning it is not in an open system and the angle is maintained across the the whole unit. The hydraulic down pressure and parallel linkage compensate for the contours in the field.

Movable Tine Baskets

(2-disk storage) guarantees perfect adaptation. By the gyroscopic effect of the tines triple coiling is a full-surface machining. The protected spring turn prevent pinching off the tips of the plants.

Allows for Better Trash Flow (vs Einbock)

Hatzenbichler has 48 tines per 5′ basket spaced 1.5″ apart, vs 60 tines spaced 1″ apart on the Einbock. We have found that allows for more trash flow, while still maintaining full soil disturbance.

Follows Field Contours

The Frame can flex with the field contours, in addition to the hydraulic down pressure.

Hatzenbichler Agro Technik Original Harrow

Officially known as the Hatzenbichler Agro Technik, “Original Harrow”, Hatzenbichler offers several models of tine weeders. Most recently, they’ve released an upgraded tine weeder model known as the “Original Harrow Air Flow”.
